SP-360 Series

The SP-360 DRE is based on the established concept like the SP-180 SRE and has a displacement of 360 cc.

By doubling the displacement, the power of the SP-360 DRE is increased. The SP-360 DRE is a twin-disc Wankel engine with up to 51 hp at 6000 rpm.

As with the SP-180 SRE, the SP-360 DRE is equipped with two independent cooling systems. A water-cooling circuit takes over the cooling of the engine housing, a second oil cooling circuit takes over the internal cooling of the piston. This is a basic requirement for a propulsion system in aeronautical applications, where continuous performance is a fundamental requirement. Thermal stability is essential, which can be guaranteed by the cooling concept.

The SP-360 DRE can be used with a combination of electric and mechanical propulsion. In the case of pure power generation, an on-board battery is required, as the Wankel engine generates electricity by means of the generator system. This electrical power can also be used as the primary drive. However, a hybrid boost mode can also be used, in which the mechanical and electrical drive can be combined for maximum power. Thanks to this integrated hybrid technology, a redundancy function is available that enables a controlled emergency landing in the event of a critical scenario.

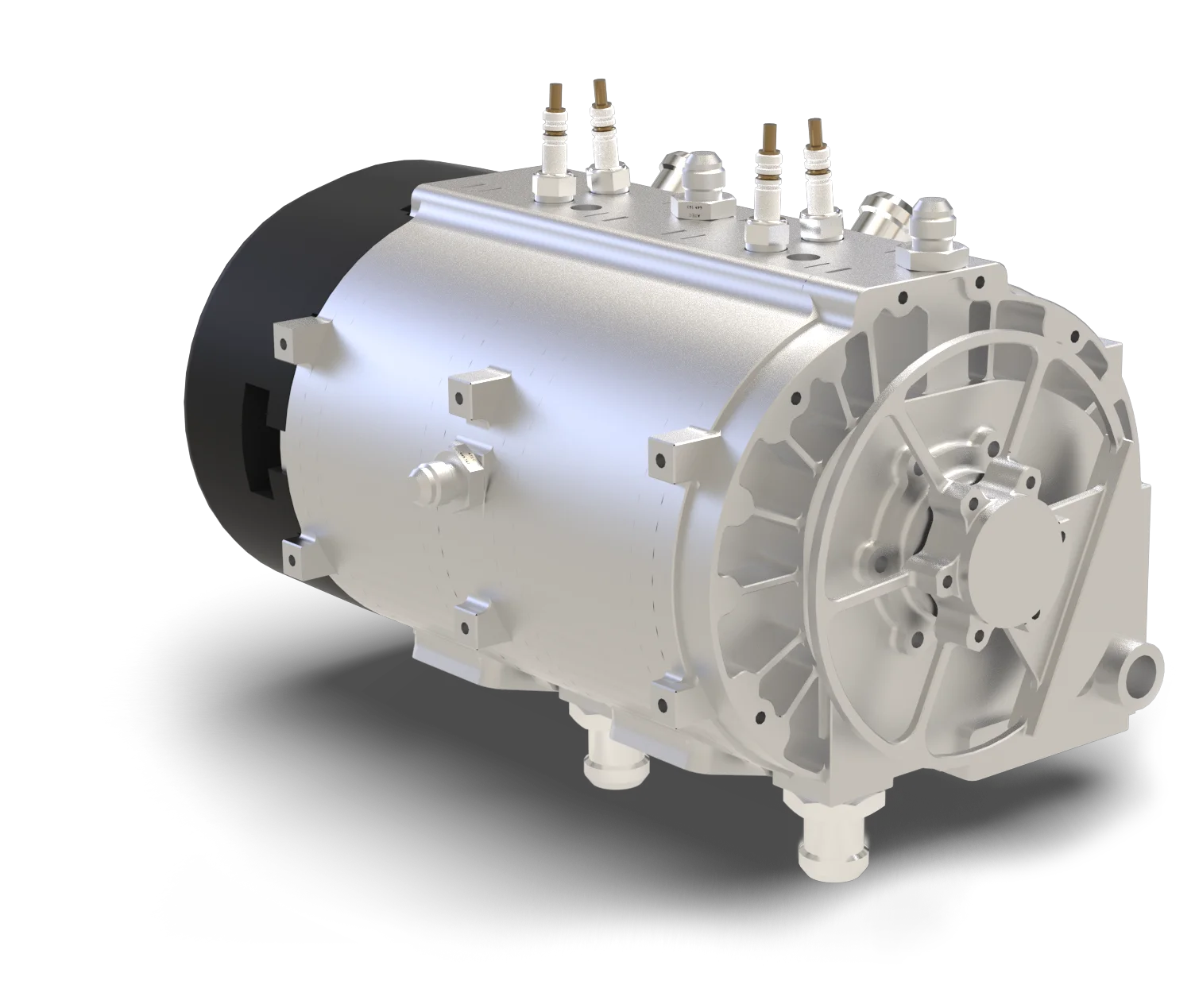

SP-360 DRE

Additional information


Wankel rotary


360 ccm / 20.98 cu in


51.3 hp / 37.7 kW @ 6000 rpm

Speed Range

1500 – 6000 rpm


without subcomponents 20.9 lbs (15.5 kg)

Oil/Gasoline ratio

1:200 mix


Water and oil
