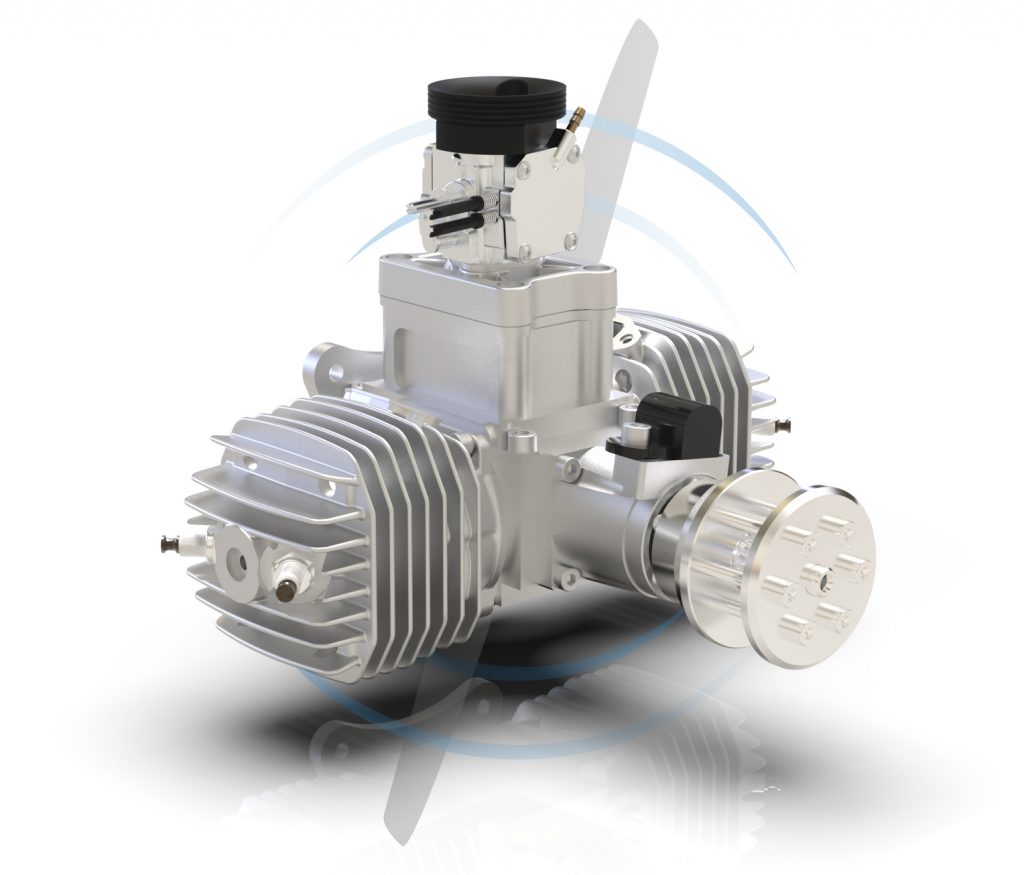

Designed and built from the same proven core architecture as other Boxer engines in Sky Power portfolio, this engine system offers power density and reliability in all operational scenarios. The SP-110 is equipped with dual spark plugs per cylinder, the crankcase is CNC machined and the cylinder is casted aluminum. The ROS feature allows for greater operational diversity, to include a starter generator which can be configured into a hybrid or power generation capability.
The SP-110 TS ORS has achieved 1000s hrs globally in all environmental conditions, with a key user flying in desert conditions with high continuous ambient temperature and sand particulates.
| Type | 2-Cylinder Gas Engine |
| Capacity | 110 ccm / 6.7 cu in |
| Power | 9.8 hp / 7.2 kW @ 6000 rpm |
| Speed Range | 1800-7000 rpm |
| Weight | without subcomponents 9.66 lbs (4.39 kg) |
| Crankshaft | 4 ball bearings |
| Oil/Gasoline ratio | 1:50 / 2 % mix |
| Operating Voltage | 12-15 V DC |
| Bore diameter | 1.77 inch (45.00 mm) |
| Stroke | 1.37 inch (35.00 mm) |
| Torque | 12.4 Nm @ 5250 rpm |
| Type | 2-Cylinder Gas Engine |
| Capacity | 110 ccm / 6.7 cu in |
| Power | 9.4 hp / 6.9 kW @ 6000 rpm |
| Speed Range | 1500-10000 rpm |
| Weight | incl. ignition 8.80 lbs (4.00 kg) |
| Crankshaft | 4 ball bearings |
| Oil/Gasoline ratio | 1:50 / 2 % mix |
| Operating Voltage | 6-8.4 V DC |
| Bore diameter | 1.77 inch (45.00 mm) |
| Stroke | 1.37 inch (35.00 mm) |
| Torque | 11 Nm @ 5750 rpm |
| Type | 2-Cylinder Gas Engine |
| Capacity | 110 ccm / 6.7 cu in |
| Power | 7.48 hp / 5.5 kW @ 6000 rpm |
| Speed Range | 2200-10000 rpm |
| Weight | 8.80 lbs (4.0 kg) incl. ignition |
| Crankshaft | 4 ball bearings |
| Oil/Gasoline ratio | 1:50 / 2 % mix |
| Operating Voltage | 6-8.4 V DC |
| Bore diameter | 1.77 inch (45.00 mm) |
| Stroke | 1.37 inch (35.00 mm) |
| Torque | 10 Nm @ 5000 rpm |
