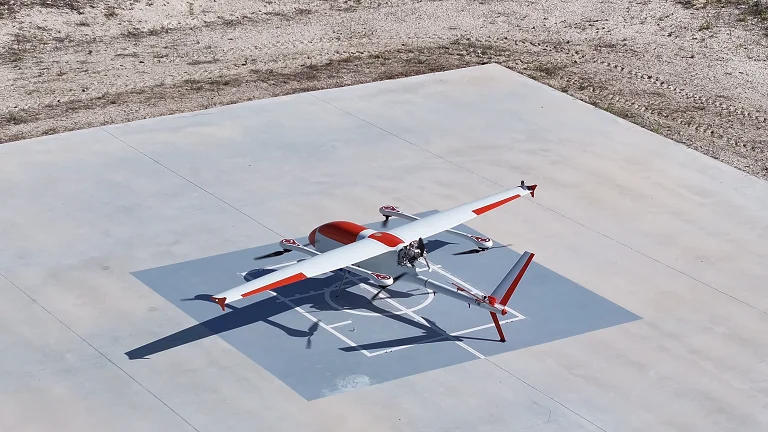

The GöKHUN Unmanned Aerial System (UAS) from Turkish company ESEN is a tactical VTOL (Vertical Take-Off and Landing) drone system that does not require a runway, offering maximum flexibility in operational use. Developed for versatile missions on land or at sea, GöKHUN combines the compact mobility of a NATO Class I UAV with the performance data of a Class II tactical system. The GöKHUN UAS uses the modern SP 210 FI GS 2-stroke engine from Sky Power International.
With a take-off weight of up to 110 kg and a maximum fuel and payload capacity of 26 kg, the GöKHUN can remain in the air for up to 16 hours with a minimum payload. Even with a demanding sensor load of 12 kg, it can achieve a flight duration of around nine hours. The drone system is therefore ideal for long-endurance reconnaissance and surveillance missions. The GöKHUN’s cruising speed is between 96 and 158 km/h. The maximum range with direct line-of-sight is over 150 km, with the system reaching a service ceiling of approximately 5,500 m. Thanks to its VTOL capability, GöKHUN can take off and land in an area measuring just ten meters by ten meters, regardless of topographical conditions and without any infrastructure. This also allows it to be deployed in remote or difficult-to-access regions and on ships.
The GöKHUN UAS from ESEN has been equipped with the modern SP 210 FI SG two-stroke engine from Sky Power International, which was specially developed for tactical drones with a take-off weight of 60–100 kg. The two-cylinder engine with a displacement of 210 cc delivers around 11 kW (14.9 hp) at 5,500 rpm. The speed range extends from 1,500 to 7,000 rpm with a maximum torque of 20.5 Nm at approx. 6,000 rpm. The SP 210 FI SG has a starter generator mounted on the rear output shaft. The weight without additional components is 9.4 kg (20.7 lbs). With integrated twin spark ignition, ECU, fuel pump, sensors, preheating system, starter generator and stainless-steel exhaust system, the SP 210 FI GS is particularly robust, compact and system-compatible. The fuel injection (FI/EFI) ensures precise and efficient engine management, which reduces fuel consumption and emissions. Thanks to the twin spark ignition, operational reliability is increased as the ignition is designed to be redundant. The electrical output voltage of 12–15 V DC also allows flexible sensor integration or the operation of an integrated generator, which is important for on-board communication functions, for example.
The motor is optimally adapted for UAV use in difficult environmental conditions, whether in dry desert or humid maritime areas. The GöKHUN was specially designed for complex ISR applications (intelligence, surveillance, reconnaissance). In addition, the system is suitable for a wide range of other applications such as environmental monitoring, disaster relief, border surveillance, anti-smuggling operations, and precision agriculture. Thanks to the integrated vision-based navigation system GöRDES, the drone is independent of GNSS signals and can therefore be reliably controlled even in GPS-denied environments. All safety-related systems, such as navigation, flight control, data transmission, and power supply, are designed with double or triple redundancy. If the connection to the ground station is lost, the UAV returns autonomously to its starting point. In addition, GNSS interference protection ensures robust operation even under electronic interference.
The GöKHUN is also designed for mobility and speed. Two technicians can have the system ready for takeoff in around 15 minutes, and it can be transported in two standard vehicles. Thanks to its modular design, the system is easy to maintain and can also be easily adapted to different application scenarios. Particularly noteworthy is the ability to operate two different payloads simultaneously, for example
EO/IR sensors for day and night operation or different communication and reconnaissance systems. Control is via an integrated ground station with a data terminal, which can also be transferred to other carrier vehicles during an operation. The system’s high environmental resistance, with an operating temperature range of −30°C to +55°C, and its ability to fly stably at wind speeds of up to 40 knots further underscore its robustness. With its ITAR-free design, GöKHUN meets international export requirements and complies with NATO standards AEP-83/84.
