SP-110 Series

This 2-stroke dual cylinder SP-110 TS ROS (rear output shaft) with 110ccm is a common engine system on UAV programs from 45-65kg MTOW.

Designed and built from the same proven core architecture as other dual cylinder engines in Sky Power portfolio, this engine system offers power density and reliability in all operational scenarios. The SP-110 is equipped with dual spark plugs per cylinder, the crankcase is CNC machined and the cylinder is casted aluminum. The ROS feature allows for greater operational diversity, to include a starter generator which can be configured into a hybrid or power generation capability.

The SP-110 TS ORS has achieved 1000s hrs globally in all environmental conditions, with a key user flying in desert conditions with high continuous ambient temperature and sand particulates.

SP-110 TS ROS

Additional information

Type

2-Cylinder Gas Engine

Capacity

110 ccm / 6.7 cu in

Power

9.4 hp / 6.9 kW @ 6000 rpm

Speed Range

1500 – 10000 rpm

Weight

incl. ignition 8.80 lbs (4.00 kg)

Crankshaft

4 ball bearings

Oil/Gasoline ratio

1:50 / 2 % mix

Operating Voltage

6 – 8.4 V DC

Bore diameter

1.77 inch (45.00 mm)

Stroke

1.37 inch (35.00 mm)

Torque

11 Nm @ 5750 rpm

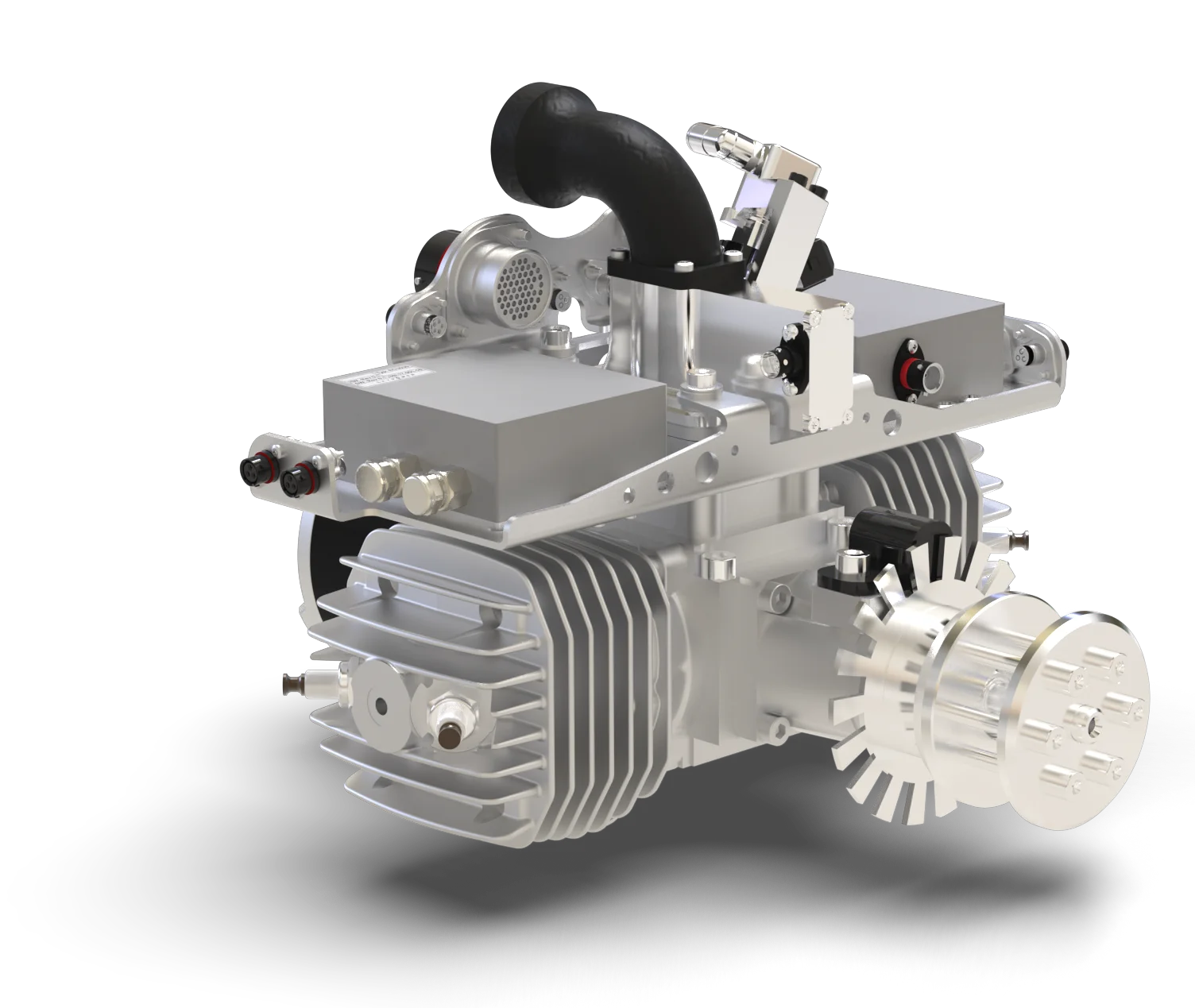

SP-110 FI TS ROS

Additional information

Type

2-Cylinder Gas Engine

Capacity

110 ccm / 6.7 cu in

Power

9.8 hp / 7.2 kW @ 6000 rpm

Speed Range

1800 – 7000 rpm

Weight

without subcomponents 9.66 lbs (4.39 kg)

Crankshaft

4 ball bearings

Oil/Gasoline ratio

1:50 / 2 % mix

Operating Voltage

12 – 15 V DC

Bore diameter

1.77 inch (45.00 mm)

Stroke

1.37 inch (35.00 mm)

Torque

12.4 Nm @ 5250 rpm

SP-110 TS ROS (exhaust on top)

Additional information

Type

2-Cylinder Gas Engine

Capacity

110 ccm / 6.7 cu in

Power

7.48 hp / 5.5 kW @ 6000 rpm

Speed Range

2200 – 10000 rpm

Weight

8.80 lbs (4.0 kg) incl. ignition

Crankshaft

4 ball bearings

Oil/Gasoline ratio

1:50 / 2 % mix

Operating Voltage

6 – 8.4 V DC

Bore diameter

1.77 inch (45.00 mm)

Stroke

1.37 inch (35.00 mm)

Torque

10 Nm @ 5000 rpm
